Automated CNC Bending Machine

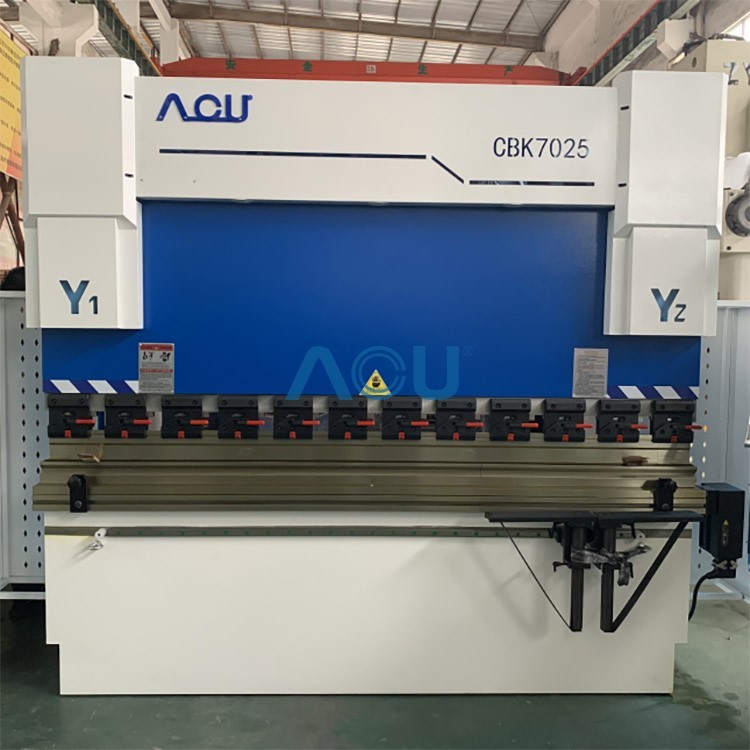

Precision CNC Bending Machines - Your Smart Metalworking Solution

Our CNC bending machines revolutionize metal fabrication with computer-controlled accuracy (±0.1° repeatability) and unmatched efficiency. They employ automatic angle measurement and servo-driven positioning to handle complex bends in sheet metal and profiles.

CNC Bending Machine Key Advantages:

✓ 30-50% faster production vs manual bending

✓ Single-step programming for batch consistency

✓ Energy-saving hydraulic systems

✓ Multi-tool compatibility (V-dies, rotary benders)

✓ User-friendly touchscreen interface with 3D simulation

Our machines are ideal for automotive parts, enclosures, and structural components. They can reduce material waste by up to 15% while ensuring workshop safety. Customizable configurations are available for stainless steel, aluminum, and copper alloys.

Environmentalist Technology

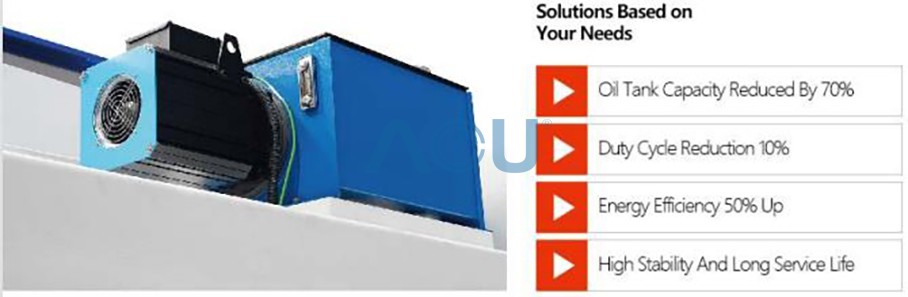

Oil Tank upgrade

What makes us different from other manufacturers

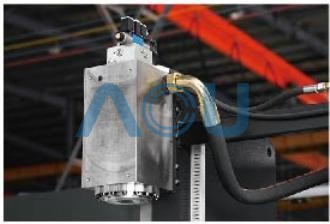

Dual Hydraulic Cylinders

Dual hydraulic cylinder located on either side of the ram provide faster approach speeds.

The cylinders are synchronized to provide smooth motion resulting in precise ram positions to accuracies of 0.0004.



Higher Quality Press Brake Tooling

Whole hardened high precision CNC press brake tooling, it is durable

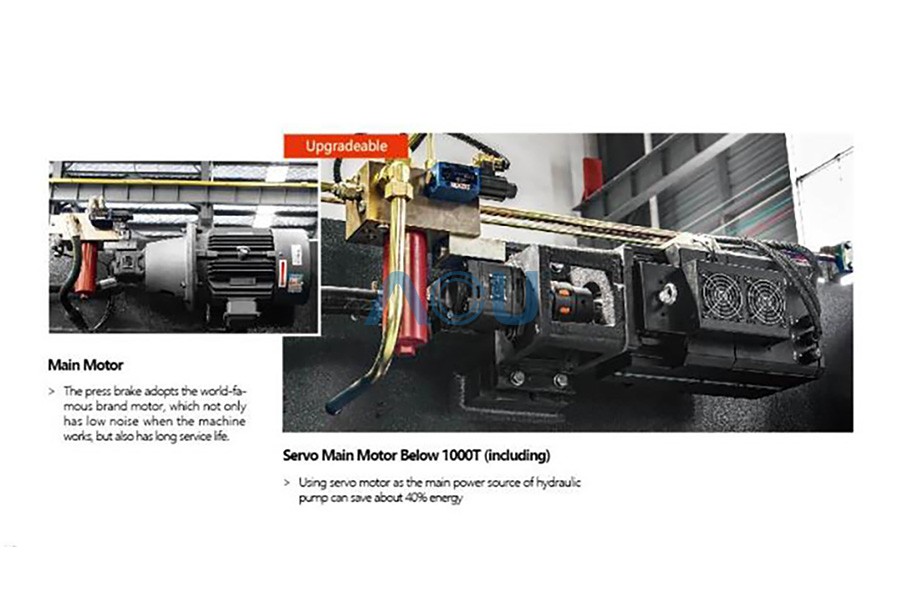

Main Motor

The press brake adopts the world-famous brand motor, which not only has low noise when the machine works, but also has long service life.

Servo Main Motor Below 1000T (including)

Using servo motor as the main power source of hydraulic pump can save about 40% energy

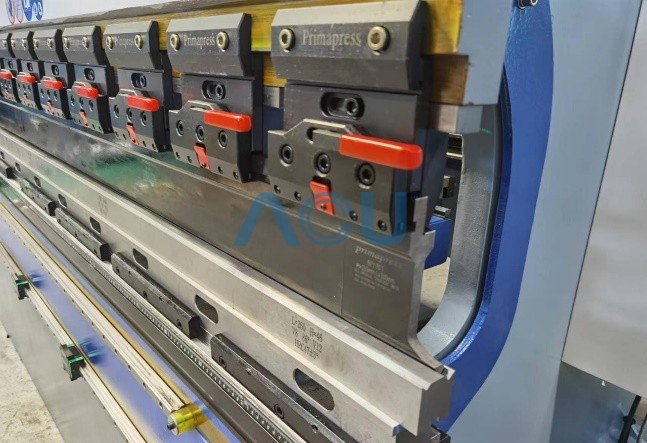

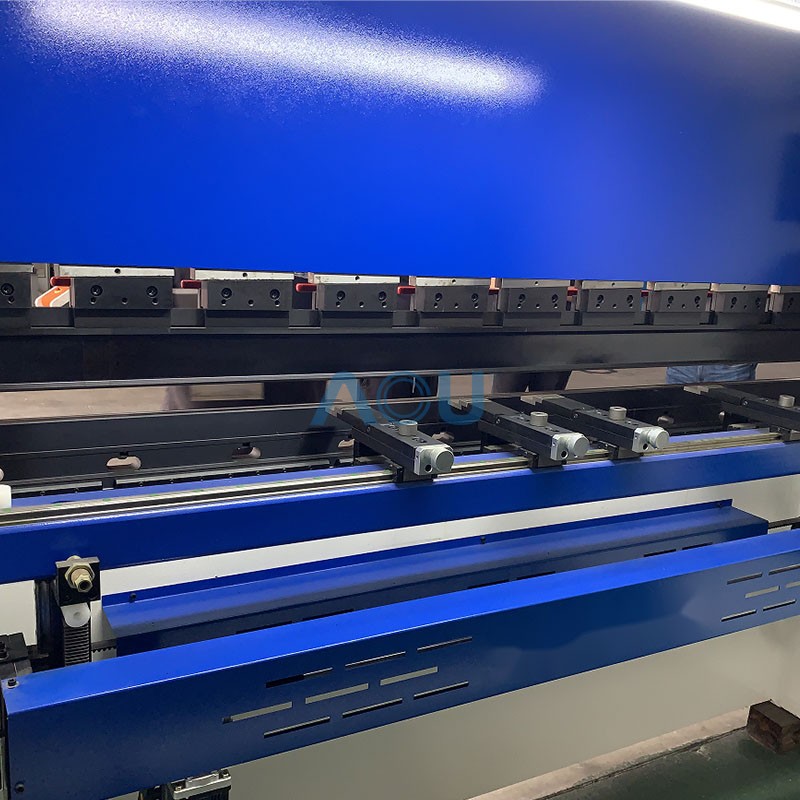

Fast Clamping System

Fast and easy to change the tooling decreasing labour strength and enhance productivity

Customized according to customer requirements

WILA NEW STANDARD AND CLAMPING SYSTEMS

innovative and super-fast clamping systems for clamping punches to the upper beams of press brakes. The Universal Press Brake Concept (UPB) makes it possible install New Standard and Clamping Systems on any press brake.



WILA NEW STANDARD CROWING AND HOLDERS

WILA Crowning systems fully compensate for the deflection in press brakes. This results in a consistent bending angle across the entire length of the machine. WILA New standard crowning Systems utilize a series of patented adjustable wedges known as Wila Waves.

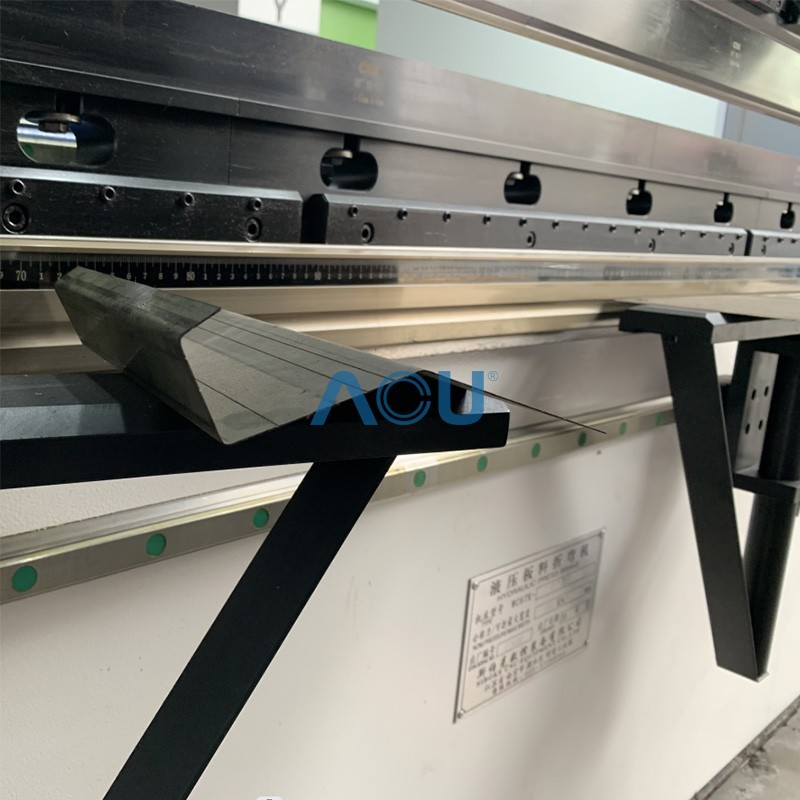

CNC FOLLOWER SUPPORTS AP1+AP2

It basically consists of a pair of sheet supports located at the front, positioned at the height of the bending line (bottom tool).

Supports are CNC-controlled, ensuring they follow and support the sheet throughout the bending process.

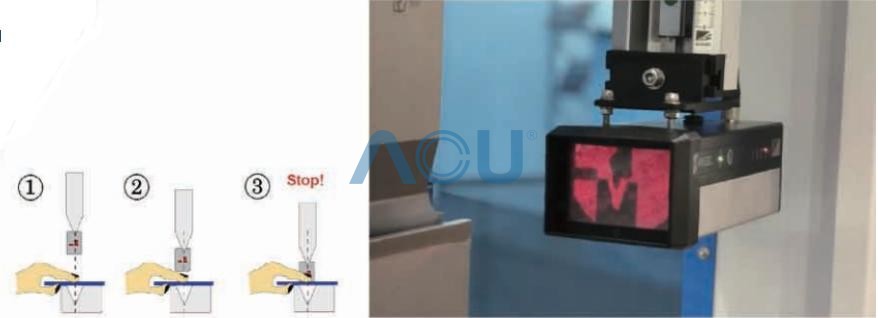

LAZERSAFE OPTICAL SAFETY GUARDS

Purpose: Offers a highly effective solution for both operator safety and machine productivity.

Compatibility: Designed for use with Lazer Safe's PCSS A Series.

Compliance: Category 4 compliant and meets the world’s most demanding international safety standards.

Certification: CE Certified Category 4 Safety Controller with integrated features.

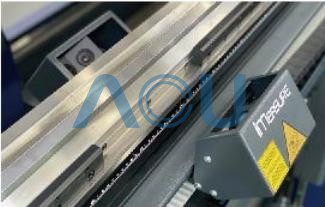

LASER CHECK ANGLE MEASUREMENT

Functionality: A bend angle measurement and correction system using a laser beam.

Components: Comprises a laser and a camera positioned on both sides of the bending line.

Detection Method: Detection is carried out using the laser and camera setup.

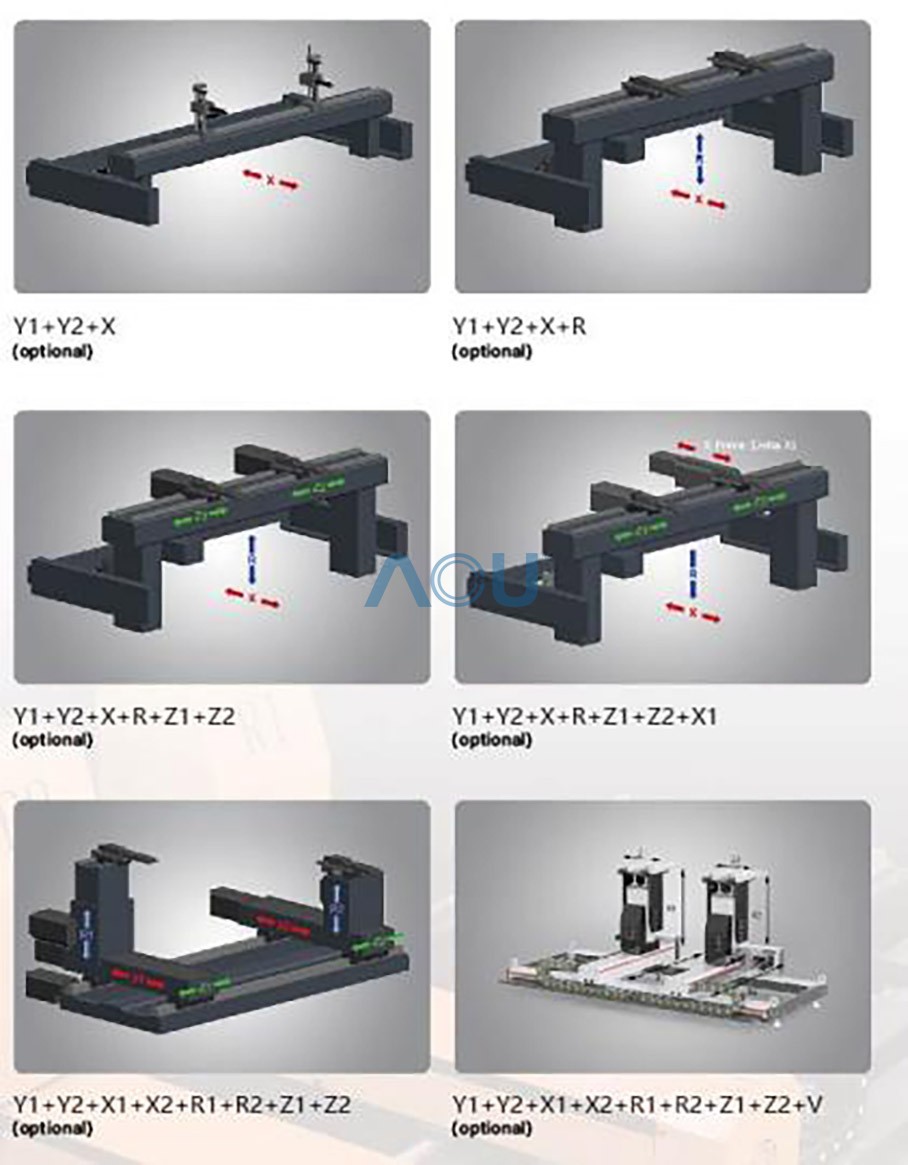

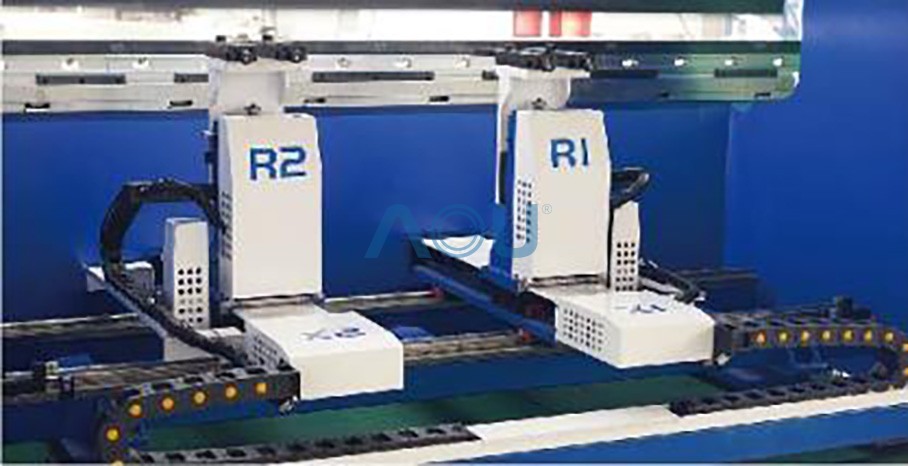

More aixe to choose

More automation

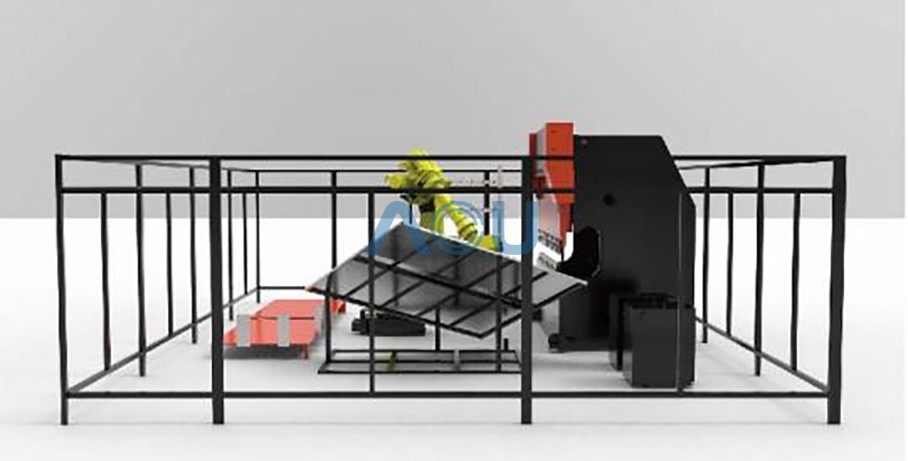

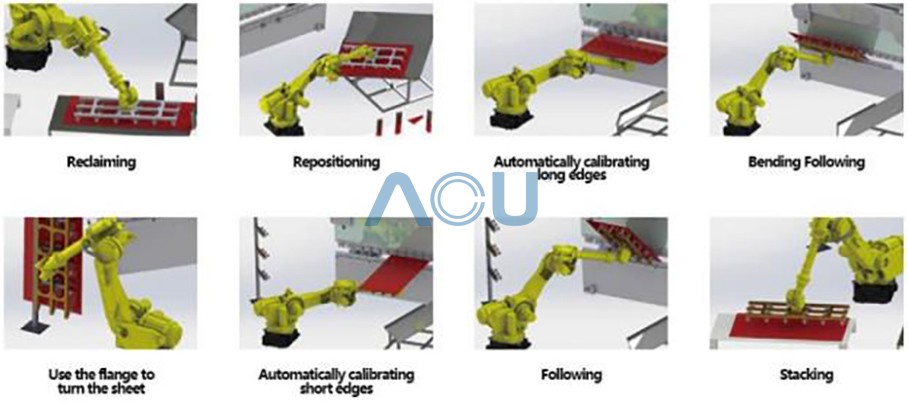

CNC Press Brake with Automated Bending Cells or Robot Bending for Sheet Metal.

ACU offers integrated solutions for the production process, including the bending cell and other operations such as punching and spot welding.

The entire routing of sheet metal material can be automated, providing considerable flexibility when manufacturing new products or changing the production process.

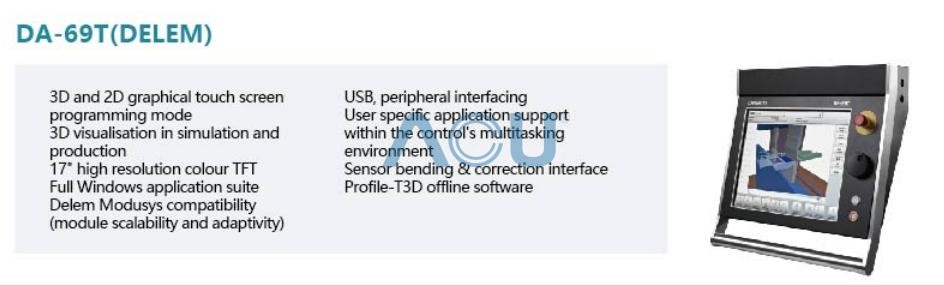

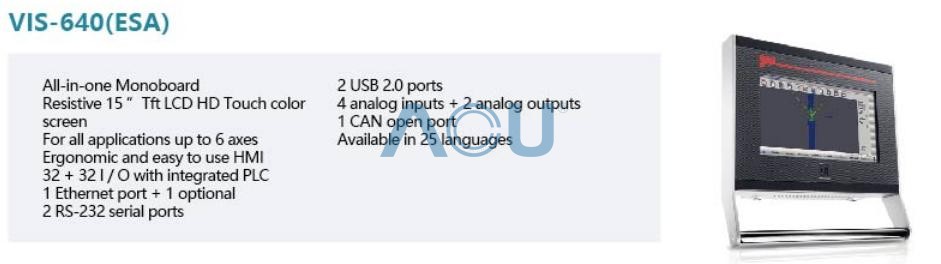

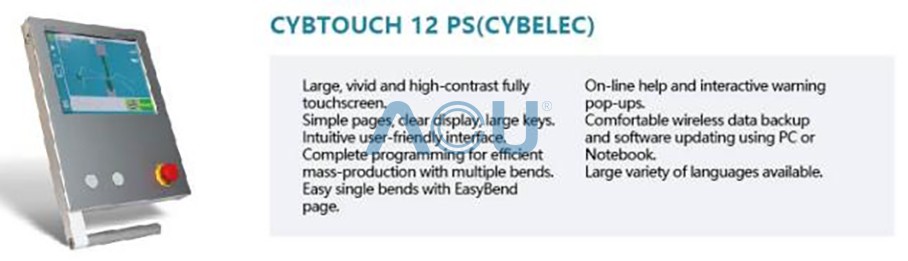

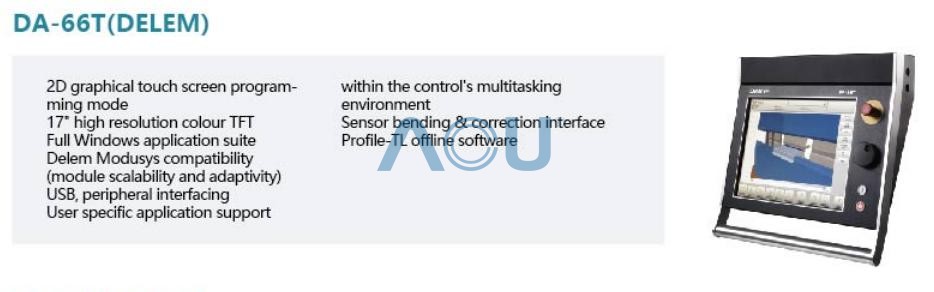

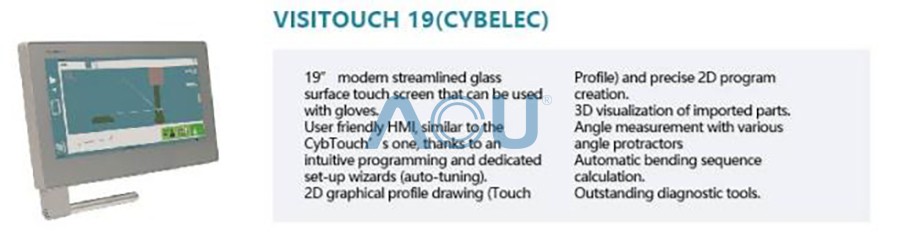

Different operating systems
