Second Hand Stainless Steel Duct Production Line U-Shaped

Second Hand Stainless Steel Duct Production Line U-Shaped

The space-saving U-shaped design of this stainless steel duct production line is ideal for small facilities, while its integrated processes (punching, rolling, locking and bending) ensure precision and speed. The system supports a variety of materials such as galvanized steel and stainless steel, providing adjustable thickness and width. With advanced servo-controlled feeding, intelligent fault diagnosis and optional customization functions, this duct production line ensures reliable performance, reduced labor costs and high production efficiency. It is ideal for small and medium-sized duct manufacturing industries.

Product Features

1. ALVS-1300 adopts U-shaped structure design, and only needs an area of ​​18 × 5.3 × 1.6 meters, which is suitable for small and medium-sized factories. Its compact design integrates punching, rolling, biting, bending and other functional modules, making the operation more efficient and smooth.

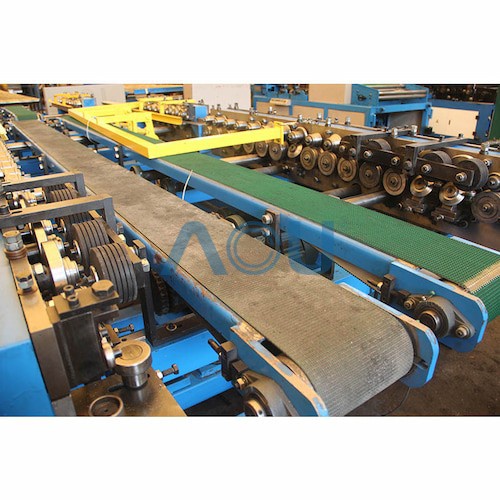

2. The stainless steel duct production line is equipped with multi-station high-precision roller molds to ensure the stable size and excellent sealing performance of the produced air ducts.

3. Only one worker is required to operate, which simplifies the process and reduces labor costs. The equipment has high speed and high production efficiency.

4. The stainless steel duct production line is equipped with an intelligent fault self-diagnosis system, which can quickly identify and solve operating problems to ensure that downtime is minimized.

5. With rich optional functions, users can customize the function modules including film lamination, hook flange, middle or side support holes, TDF common plate flange edge punching, thin-cutting machine switching, etc.

Mechanical parameters

Optional configuration:

• 460–630 8-ton internal support electric single rack
• 460–630 8-ton internal support electric double rack

Optional functions:

• Film sticking
• Hook flange
• Middle support hole
• Side support hole
• TDF common plate flange edge punching
• Thin-type bite machine can be switched

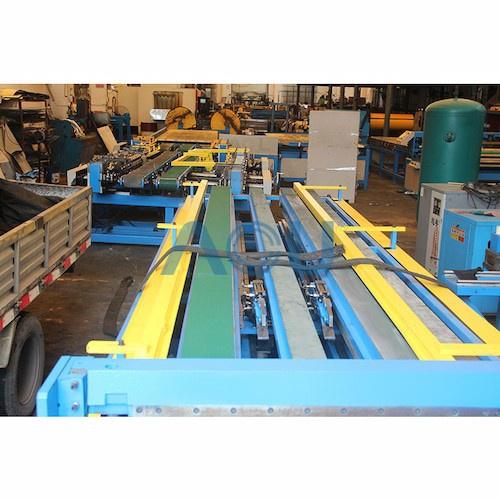

* Note: The picture shows the 1.3m model
