The ZF305-45 Precision Double-Miter Saw is a highly efficient, self-developed cutting machine engineered for precise 45° cuts. This equipment is designed to cater to the unique requirements of the window and door industry, ensuring smooth operation, high precision, and reliable performance.
Air Outlet 45 Degree Angle Cutting Machine

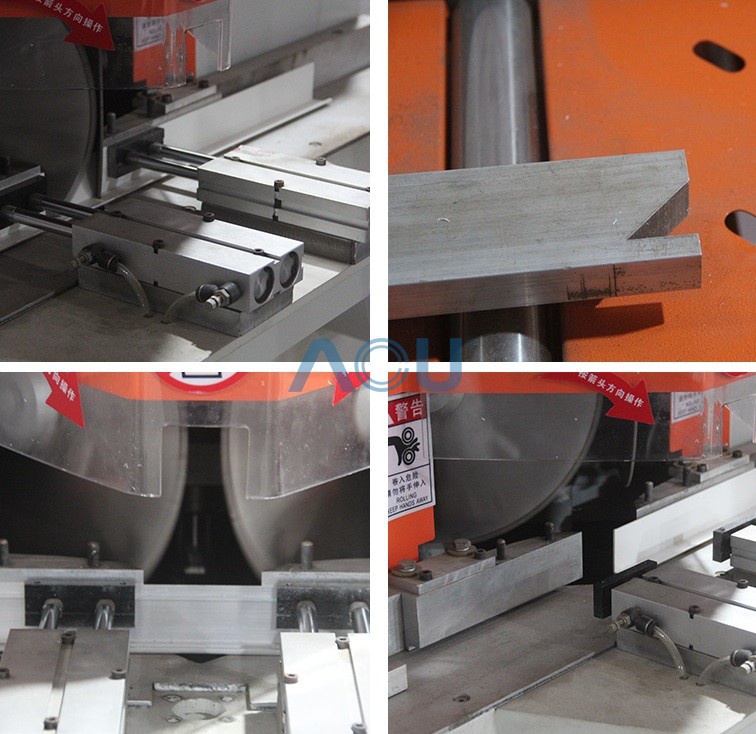

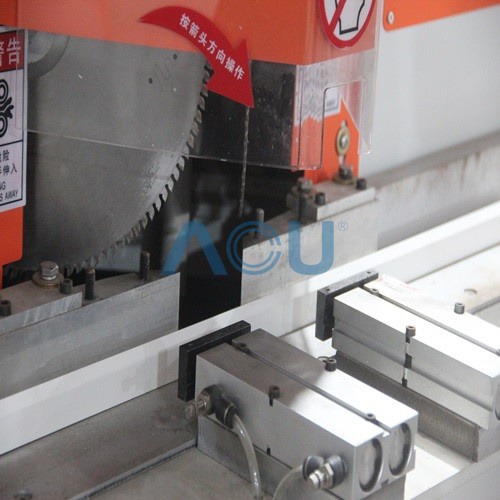

The Precision Double-Miter Saw stands out due to its innovative design that supports automatic feeding, clamping, and pneumatic cutting. With its sturdy structure and advanced features, this machine optimizes the production of window and door frames, improving the alignment and sealing of connected materials. Its ability to cut materials at a consistent 45° angle ensures superior joint precision, making it an essential tool for manufacturers aiming for high-quality output.
Key Features of the Angle Cutting Machine:
1. Custom Design: The machine is designed in-house to meet specialized industry needs for 45° angle cuts.
2. Easy Operation: The user-friendly controls allow for simplified operation, requiring minimal training.

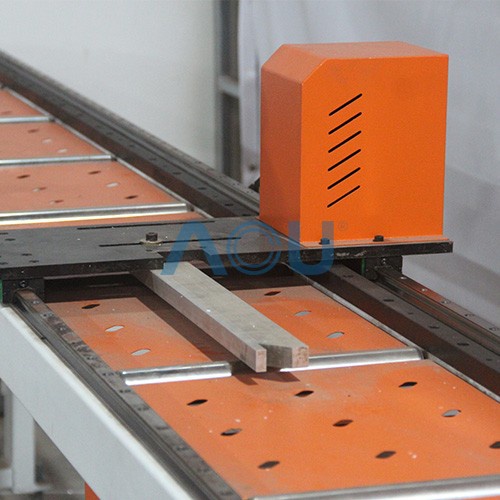

3. Automatic Functionality: Equipped with automatic feeding, clamping, and pneumatic cutting for efficient workflows.

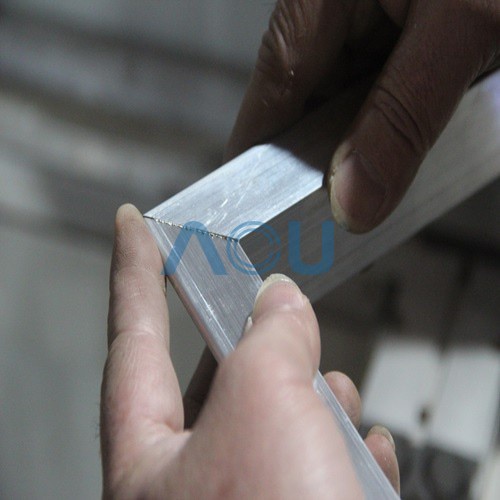

4. Precision Cutting: Achieves clean and accurate 45° cuts, enhancing the connection quality and durability of frames.
5. Powerful Performance: Operates at 6.0-8.0MPa pressure with strong motor support, ensuring smooth and continuous production.
6. Durable Construction: Built with a robust structure for long-lasting use and stable performance.
7. Adjustable Work Range: Suitable for various material dimensions, with a cutting length of up to 1200mm.
8. Safe and Reliable: Features built-in safety mechanisms and an enclosed cutting area to protect operators.
9. Enhanced Sealing: The precision of the cuts supports seamless connections that prevent gaps and ensure optimal sealing.
10. Compact Size: Designed with a space-saving footprint, ideal for different manufacturing environments.
Main Technical Parameters
| Specification | Details |
| Device model | ZF-305 |
| Device voltage | 380V/220V |
| Motor power | 1.5*2KW |
| Saw blade size | 305X2.5X4.3X120t |
| Saw blade speed | 4300 R/min |
| Working Pressure | 0.6MPa-0.8MPa |
| Saw blade cooling method | Oil mist cooling |
| 45°Cutting Precision | ±0.02mm |
| Equipment Weight | 300kg |
| Cutting Angle | 45°×2 |
| Working principle | Semi-automatic |
| Gas connection size | 1180*750*1320mm |
