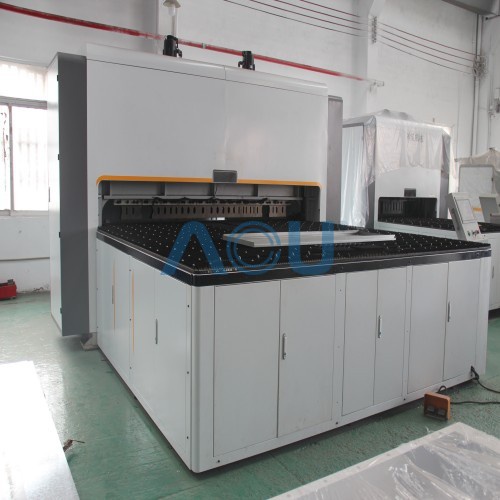

Our suction cup CNC bending center features a durable cage-type structure of high-precision 80mm steel plates for exceptional stability and torsional resistance. Precision machining and specialized tooling ensure consistent accuracy, backed by rigorous testing. Ergonomically designed, it combines functionality with an appealing look.
1. Cage-type welding bed: It adopts high-precision 80mm thickened steel plate overall cage-type structure, triangular interconnection design, and has undergone precise finite element force analysis. CO2 full welding process is used for welding. After the machine tool is welded, it undergoes high-temperature annealing and mechanical processing to ensure the torsional deformation resistance and long-term microscopic stability of the bed, and there is no risk of cracking. The appearance is ergonomic, beautiful and coordinated.
2. Processing technology
Nanjing Technology 8020 heavy-duty grinding-grade screws are selected, which have more stable transmission and higher precision.
We use Nanjing Technology's heavy-duty, high-precision P-grade 55 ball-type linear rails, which have a heavy load-bearing capacity and higher precision.
We use NACHI's original high-load ball screw injection molding machine bearings, with a bearing ball diameter of up to 16mm
The system has a rich set of Industry 4.0 interfaces, which can be connected to the robot arm to realize automatic loading and unloading.
With the three-dimensional self-driving robot arm, the same control system as the bending center, there is no need for secondary programming to replace the workpiece. The system automatically generates the robot arm movement according to the bending instruction, which is more efficient and better coordinated.
|
|
ACU-1400XP |
ACU-2000XP |
ACU-2200XP |
ACU-2500XP |
ACU-3000XP |
|
Feeding method |
Suction cup |
Suction cup |
Suction cup |
Suction cup |
Suction cup |
|
Positioning method |
Y-axis three-dimensional ruler |
Y-axis three-dimensional ruler |
Y-axis three-dimensional ruler |
Y-axis three-dimensional ruler |
Y-axis ruler |
|
Applicable materials |
Stainless steel, aluminum plate, cold plate and other metal materials |
Stainless steel, aluminum plate, cold plate and other metal materials |
Stainless steel, aluminum plate, cold plate and other metal materials |
Stainless steel, aluminum plate, cold plate and other metal materials |
Stainless steel, aluminum plate, cold plate and other metal materials |
|
Minimum thickness of plate |
0.15mm |
0.15mm |
0.15mm |
0.15mm |
0.15mm |
|
Maximum thickness of plate |
UTS 520N/mm² Stainless steel 1.2mm UTS 410N/mm² Galvanized plate and ordinary carbon steel plate 2.0mm UTS 265N/mm² Aluminum plate 3.5mm |
UTS 520N/mm² Stainless steel 1.2mm UTS 410N/mm² Galvanized plate and ordinary carbon steel plate 2.0mm UTS 265N/mm² Aluminum plate 3.5mm |
UTS 520N/mm² Stainless steel 1.2mm UTS 410N/mm² Galvanized plate and ordinary carbon steel plate 2.0mm UTS 265N/mm² Aluminum plate 3.5mm |
UTS 520N/mm² Stainless steel 1.2mm UTS 410N/mm² Galvanized plate and ordinary carbon steel plate 2.0mm UTS 265N/mm² Aluminum plate 3.5mm |
UTS 520N/mm² Stainless steel 1.2mm UTS 410N/mm² Galvanized plate and ordinary carbon steel plate 2.0mm UTS 265N/mm² Aluminum plate 3.5mm |
|
Dimensions of plate raw material |
Maximum 1400×1400 mm |
Maximum 2000×2000 mm |
Maximum 2200×2200 mm |
Maximum 2500×2500 mm |
Maximum 3000×3000 mm |
|
Minimum size after processing |
Minimum 180-320 mm (opening size does not include inner edge) |
Minimum 250-400 mm (opening size does not include inner edge) |
Minimum 280-420 mm (opening size does not include inner edge) |
Minimum 380-420 mm (opening size does not include inner edge) |
Minimum 380-420 mm (opening size does not include inner edge) |
|
Requirements for plate |
Surface flat, edge without burrs, accurate cutting size |
Surface flat, edge without burrs, accurate cutting size |
Surface flat, edge without burrs, accurate cutting size |
Surface flat, edge without burrs, accurate cutting size |
Surface flat, edge without burrs, accurate cutting size |
|
Fastest bending knife speed |
0.3 seconds/knife |
0.3 seconds/knife |
0.3 seconds/knife |
0.3 seconds/knife |
0.3 seconds/knife |
|
Maximum bending throat height |
180mm |
180mm |
180mm |
180mm |
180mm |
|
Rated voltage |
380V |
380V |
380V |
380V |
380V |
|
Total motor power |
≈40KW |
≈40KW |
≈40KW |
≈40KW |
≈40KW |
|
Average energy consumption |
≈4KW/hour |
≈4KW/hour |
≈4KW/hour |
≈4KW/hour |
≈4KW/hour |
|
Noise |
≈50dB |
≈50dB |
≈50dB |
≈50dB |
≈50dB |
|
Dimensions |
360×300×280 cm |
480×380×280 cm |
520×420×280 cm |
540×460×280 cm |
600×500×280 cm |
|
Total mass |
≈9T |
≈13T |
≈14T |
≈15T |
≈18T |
|
Number of axes |
Standard 10 axes |
Standard 10 axes |
Standard 10 axes |
Standard 10 axes |
Standard 10 axes |
|
Computerized knife assembly and code scanning |
Optional |
Optional |
Optional |
Optional |
Optional |
|
*Due to large fluctuations in exchange rates, the RMB price is used as the base price and converted based on the exchange rate on the day of the transaction |
|||||
