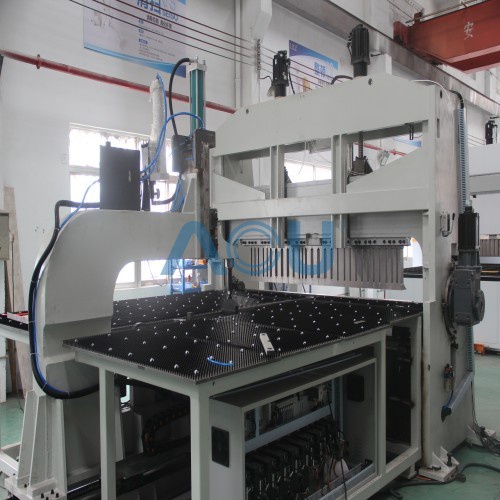

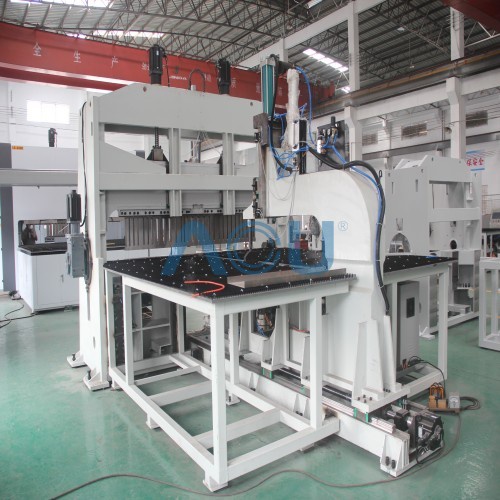

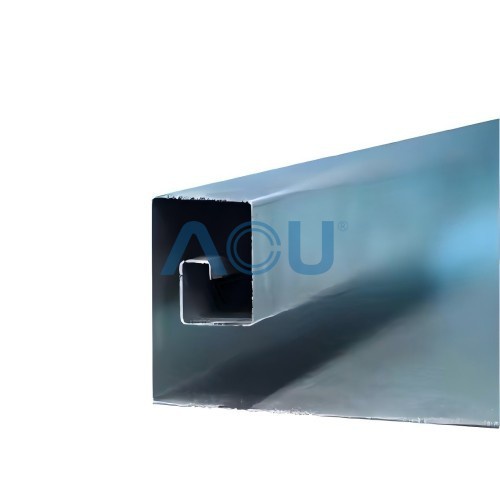

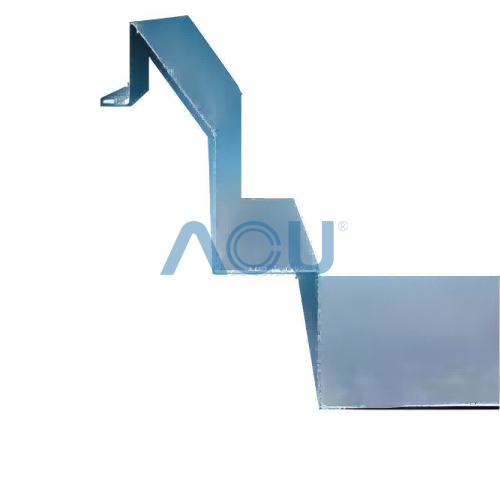

The press arm CNC bending center is engineered for precision and efficiency in metalworking. Featuring a robust cage-type welding bed and cutting-edge processing technology, this machine ensures high performance and reliability for various bending applications.
Press Arm CNC Bending Center
Designed with high-precision components and a meticulous manufacturing process, the Press Arm CNC Bending Center excels in delivering accurate bends with minimal deformation over time. Its ergonomic design not only enhances usability but also integrates seamlessly into modern manufacturing workflows, making it an ideal choice for industries seeking to embrace Industry 4.0 solutions.
1. Cage-Type Welding Bed: Constructed from a 80mm thickened steel plate with a triangular interconnection design, this bed undergoes a CO2 full welding process followed by high-temperature annealing. This ensures exceptional torsional deformation resistance and long-term stability, preventing any risk of cracking.
2. Advanced Processing Technology: Multiple heat treatments, including tempering and annealing, guarantee that castings and welded support tables maintain their integrity without deformation over prolonged use.
3. Precision Machining: The use of specialized tooling fixtures and high-precision machining centers ensures consistency in accuracy throughout the production process.
4. Rigorous Testing: Each workpiece undergoes stringent quality control using high-precision micrometers and stable marble platforms, ensuring that processing accuracy is meticulously maintained.
5. Heavy-Duty Components:
Nanjing Technology 8020 heavy-duty grinding-grade screws for stable transmission and high precision.
P-grade 55 ball-type linear rails for superior load-bearing capacity and accuracy.
NACHI high-load ball screw injection molding machine bearings with a bearing ball diameter of 16mm.
6. Industry 4.0 Integration: The system features a comprehensive set of Industry 4.0 interfaces, enabling connectivity with robotic arms for automated loading and unloading processes.
Technical Parameters
|
|
ACU-1400YB |
ACU-2000YB |
ACU-2200YB |
ACU-2500YB |
ACU-3000YB |
|
Feeding method |
Press arm |
Press arm |
Press arm |
Press arm |
Press arm |
|
Positioning method |
Y-axis three-dimensional ruler |
Y-axis three-dimensional ruler |
Y-axis three-dimensional ruler |
Y-axis three-dimensional ruler |
Y-axis three-dimensional ruler |
|
Applicable materials |
Stainless steel, aluminum plate, cold plate and other metal materials |
Stainless steel, aluminum plate, cold plate and other metal materials |
Stainless steel, aluminum plate, cold plate and other metal materials |
Stainless steel, aluminum plate, cold plate and other metal materials |
Stainless steel, aluminum plate, cold plate and other metal materials |
|
Minimum thickness of plate |
0.15mm |
0.15mm |
0.15mm |
0.15mm |
0.15mm |
|
Maximum thickness of plate |
UTS 520N/mm² Stainless steel 1.2mm UTS 410N/mm² Galvanized plate and ordinary carbon steel plate 2.0mm UTS 265N/mm² Aluminum plate 3.5mm |
UTS 520N/mm² Stainless steel 1.2mm UTS 410N/mm² Galvanized plate and ordinary carbon steel plate 2.0mm UTS 265N/mm² Aluminum plate 3.5mm |
UTS 520N/mm² Stainless steel 1.2mm UTS 410N/mm² Galvanized plate and ordinary carbon steel plate 2.0mm UTS 265N/mm² Aluminum plate 3.5mm |
UTS 520N/mm² Stainless steel 1.2mm UTS 410N/mm² Galvanized plate and ordinary carbon steel plate 2.0mm UTS 265N/mm² Aluminum plate 3.5mm |
UTS 520N/mm² Stainless steel 1.2mm UTS 410N/mm² Galvanized plate and ordinary carbon steel plate 2.0mm UTS 265N/mm² Aluminum plate 3.5mm |
|
Dimensions of plate raw material |
Maximum 1400×1400 mm |
Maximum 2000×2000 mm |
Maximum 2200×2200 mm |
Maximum 2500×2500 mm |
Maximum 3000×3000 mm |
|
Minimum size after processing |
Minimum 180-320 mm (opening size does not include inner edge) |
Minimum 250-400 mm (opening size does not include inner edge) |
Minimum 280-420 mm (opening size does not include inner edge) |
Minimum 380-420 mm (opening size does not include inner edge) |
Minimum 380-420 mm (opening size does not include inner edge) |
|
Requirements for plate |
Surface flat, edge without burrs, accurate cutting size |
Surface flat, edge without burrs, accurate cutting size |
Surface flat, edge without burrs, accurate cutting size |
Surface flat, edge without burrs, accurate cutting size |
Surface flat, edge without burrs, accurate cutting size |
|
Fastest bending knife speed |
0.3 seconds/knife |
0.3 seconds/knife |
0.3 seconds/knife |
0.3 seconds/knife |
0.3 seconds/knife |
|
Maximum bending throat height |
180mm |
180mm |
180mm |
180mm |
180mm |
|
Rated voltage |
380V |
380V |
380V |
380V |
380V |
|
Total motor power |
≈45KW |
≈45KW |
≈45KW |
≈45KW |
≈45KW |
|
Average energy consumption |
≈4KW/hour |
≈4KW/hour |
≈4KW/hour |
≈4KW/hour |
≈4KW/hour |
|
Noise |
≈50dB |
≈50dB |
≈50dB |
≈50dB |
≈50dB |
|
Dimensions |
400×300×280 cm |
520×380×280 cm |
560×420×280 cm |
600×460×280 cm |
640×500×280 cm |
|
Total mass |
≈11T |
≈15T |
≈16T |
≈17T |
≈19T |
|
Number of axes |
Standard 12 axes |
Standard 12 axes |
Standard 12 axes |
Standard 12 axes |
Standard 12 axes |
|
Computerized knife assembly and code scanning |
Optional |
Optional |
Optional |
Optional |
Optional |
|
*Due to large fluctuations in exchange rates, the RMB price is used as the base price and converted based on the exchange rate on the day of the transaction |
|||||
Mechanical CNC turret punch press machine performance is in the domestic absolute leading position, has a high degree of automation, high efficiency, stable performance, safe and reliable, is the ideal equipment of sheet metal industry.
Details
The CNC round straight flange forming integrated machine is designed for precise and efficient circular flange production. With high automation levels, this machine significantly enhances operational efficiency and cost control, delivering exceptional safety and performance.
Details
This curtain rod production line features an advanced computer control system that automates the entire process from material feeding to cutting. With closed-loop feedback performance, this system ensures easy operation, stable performance, and precise dimension control.
Details
Our suction cup CNC bending center features a durable cage-type structure of high-precision 80mm steel plates for exceptional stability and torsional resistance. Precision machining and specialized tooling ensure consistent accuracy, backed by rigorous testing. Ergonomically designed, it combines functionality with an appealing look.
Details
The press arm CNC bending center is engineered for precision and efficiency in metalworking. Featuring a robust cage-type welding bed and cutting-edge processing technology, this machine ensures high performance and reliability for various bending applications.
Details
This is a state-of-the-art, high-efficiency automatic production line tailored for manufacturing high-quality fire dampers. Leveraging advanced technologies and production techniques, this innovative machine eliminates traditional welding and rust-prevention processes, providing a seamless, environmentally-friendly solution that enhances production efficiency, stability, and product consistency.
Details
This rain gutter making machine is engineered to take your gutter manufacturing process to the next level. From start to finish, this machine automates material handling, punching, forming, and cutting—all with top-notch precision. Designed for high efficiency and minimal waste, it delivers consistent results across all production runs, ensuring gutters of uniform quality every time.
Details
The 3-in-1 laser welding, cleaning, and cutting machine is a versatile, portable solution that combines three functions into one system. It features a hand-held laser cutting gun for metal cutting, a welding gun for metal joining, and a cleaning gun to efficiently remove rust, paint, and coatings. Its multifunctionality makes it suitable for a wide range of applications.
Details
