Automatic Sandwich Panel Production Equipment

Automatic Sandwich Panel Production Equipment

Our sandwich panel machine is engineered for high productivity and precision. Equipped with a robust framework, 58 polyurethane rubber rollers, dual cutting devices, and advanced automation, it guarantees smooth and efficient production processes. The machine's modular design allows for easy operation and high-quality output, making it the ideal solution for manufacturers seeking consistent performance and high-efficiency sandwich panel production.

Product Features

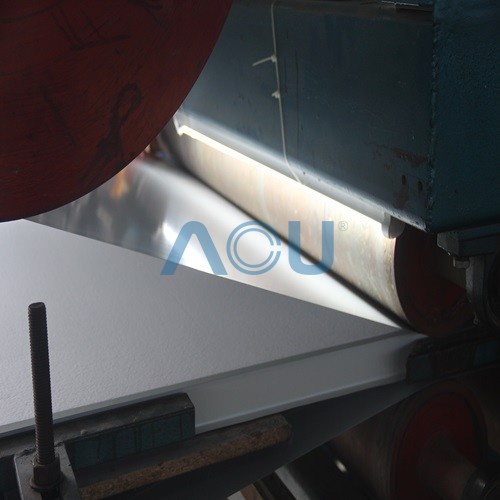

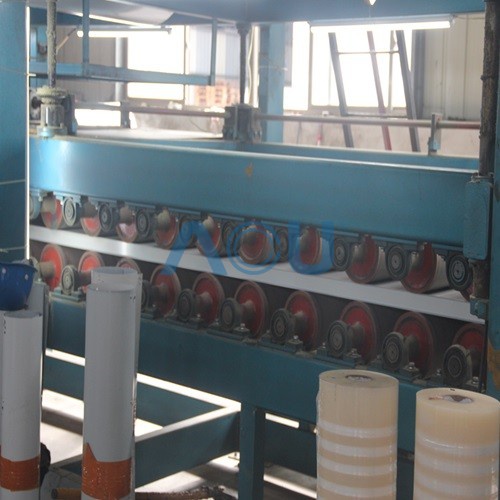

• Polyurethane Rubber Rollers
  The machine includes 58 polyurethane rubber rollers on the upper and lower pressure wheel frames, ensuring an even and consistent pressure distribution throughout the panel forming process.

• Large Re-Pressure Point
  With a roller diameter of ∮ 180mm, the re-pressure point is larger, helping to achieve better panel formation and adhesion.

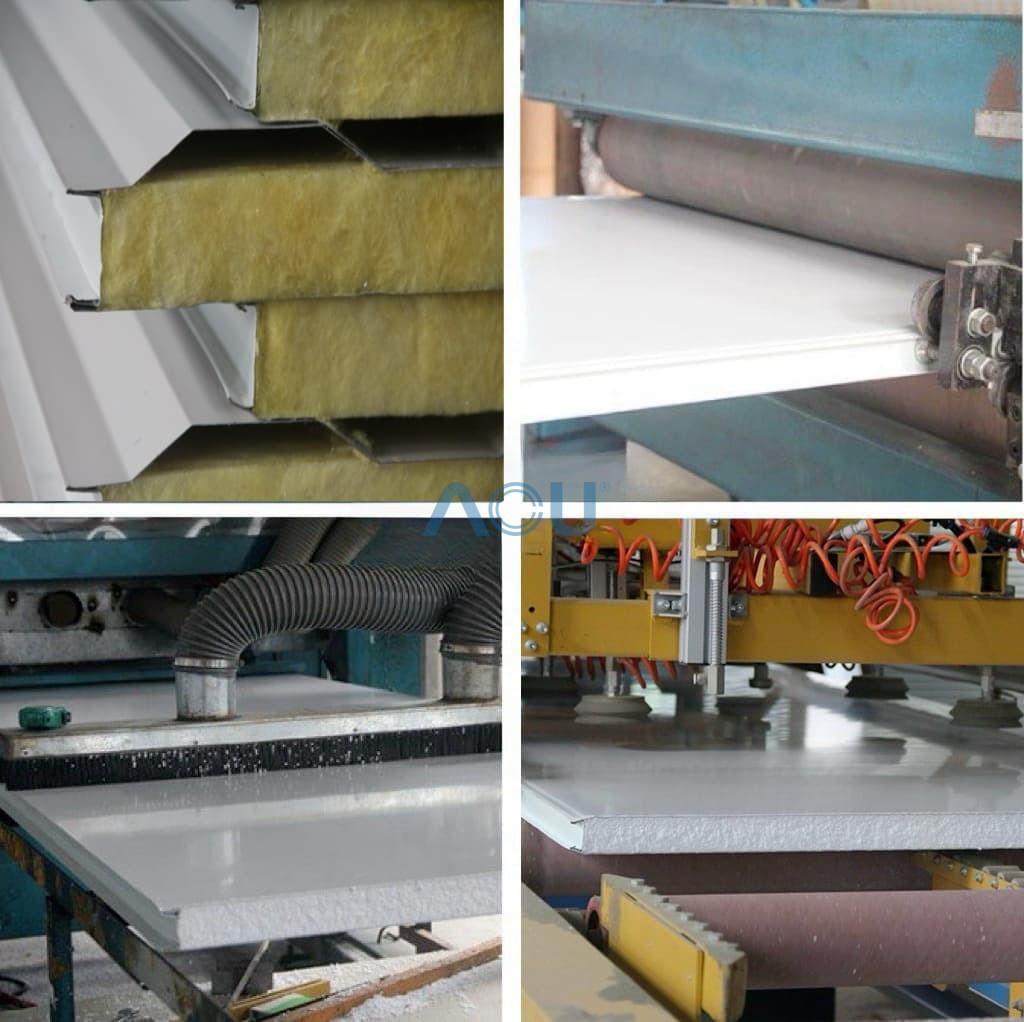

• Dual Hob Cutting Devices
  Equipped with two sets of upper and lower hob cutting devices for precision cutting, ensuring clean and accurate edges for sandwich panels.

• Long Roller Frame
  The main roller frame spans 9.6 meters, providing ample space for continuous production of large panels.

• Rock Wool Conveyor Belts
  The conveyor frame is 6.7 meters long and is equipped with two rock wool conveyor belts, facilitating efficient material handling during the production process.

• Host Gantry Frames
  Four gantry frames ensure stability and support for the machine, allowing for smooth and precise operation.

• High-Power Host Motor
  The main motor has a power rating of 5.5KW, providing strong and reliable performance for demanding tasks.

• Glue Pump System
  The system features two motors and frequency converters to control four glue pumps, offering superior control and consistency in adhesive application.

• Pneumatic Evening Plate
  The evening plate automatically lifts and lowers pneumatically, using a linear guide for precise movement.

• Self-Insert Crimping System
  The machine includes eleven forming steps with flanging wheels made of bearing steel, treated through vacuum quenching for hardness (58-62 HRC), ensuring robust and precise crimping.

• Edge Banding Steel Belt Machines
  The system is equipped with two sets of edge banding steel belt machines, providing high-quality edge finishes.

• Sturdy Frame Construction
  The upper pressure wheel frame is constructed from 200x80x8mm rectangular tubes, while the lower pressure wheel frame and large frame are made from 180x80x6mm, offering exceptional durability.

Applications

• Construction

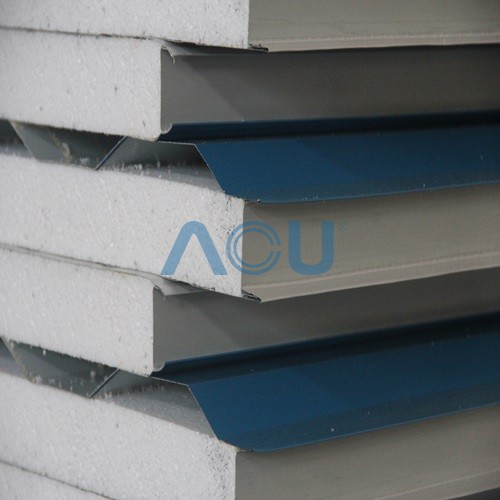

  Ideal for producing insulated panels used in building construction, particularly for energy-efficient buildings and cold storage facilities.

• Refrigeration
  Perfect for the manufacturing of panels for refrigerated trucks, cold rooms, and other temperature-controlled environments.

• Industrial Use
  Also suitable for a variety of other industrial applications where sandwich panels are required for insulation, soundproofing, or structural support.
