Laser Tube Cutting Machine

Laser Tube Cutting Machine

Fiber lasers have many unique advantages: good beam quality; small size, light weight, maintenance-free; simple and easy to operate with air cooling; low operating cost, can be used in industrial environments; long life, high processing accuracy, high speed; high power conversion efficiency, can achieve intelligent, automated, flexible operation, etc. From the perspective of the development of the entire laser technology, fiber laser represents the development direction and trend of lasers, and has important application prospects in the fields of industry, national defense, etc.

Application industries: metal cutting, electrical switch manufacturing, elevator manufacturing, household appliance manufacturing, kitchenware manufacturing, tool processing, and other machinery manufacturing and processing industries.

Applicable materials: Professionally used for cutting a variety of thin metal pipes, high-quality cutting of 0.5~12mm carbon steel pipes, 0.5~6mm stainless steel pipes. It can also cut galvanized sheets, electrolytic sheets, silicon steel and other metal pipes. The maximum diameter of the cutting round pipe is 360mm and the length is 6.5 meters.

 Equipment features:

1. The machine adopts a dynamic gantry structure, imported high-precision racks and linear guides, with stable transmission and high precision.

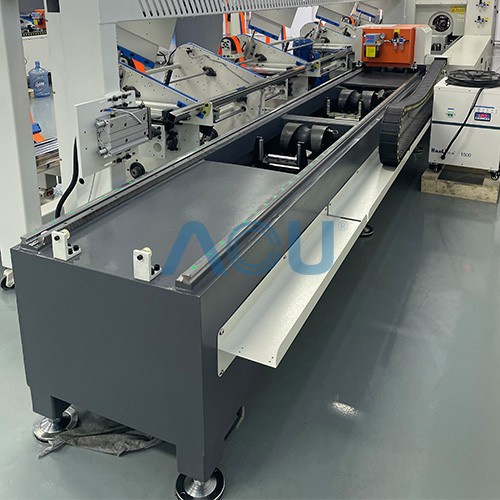

2. The bed adopts a frame structure and is manufactured according to the standards of large machine tools. It is rough-machined after stress relief annealing, and then processed using a large machining center to maintain high strength, high precision, and can be used for a long time without deformation.

4. The X, Y, and Z axes all use servo motors with high precision, high speed, high torque, large inertia, stable and durable performance. The high speed and acceleration of the whole machine are guaranteed.

5. The Shanghai Weihong fiber laser cutting machine special tube cutting CNC system based on the Windows operating system is adopted, which integrates the special function module for laser cutting control, has powerful functions, good human-machine interface, and simple operation.

Main configuration of CNC fiber laser cutting machine system

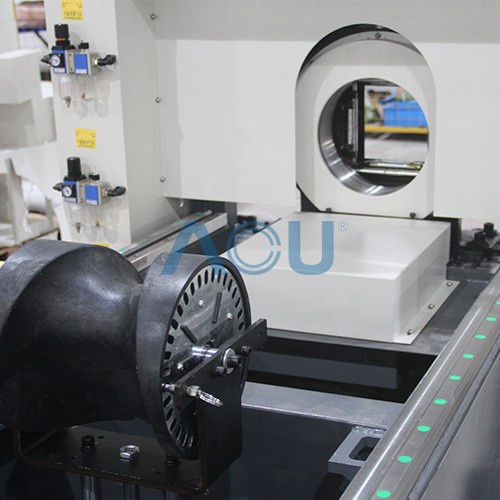

Fiber Laser Cutting Machine Host

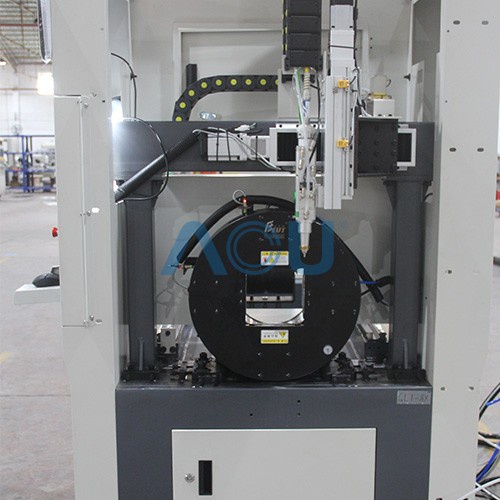

The host part consists of the bed, moving beam, workbench, Z-axis device, operation control part, gas circuit and water circuit, etc. The system controls the motors of the X, Y and Z axes, thereby driving the cutting head to achieve stable, reliable and high-speed reciprocating motion. The movement stroke in the X direction is 360mm; the movement stroke in the Y direction is 6000mm; a fully enclosed dustproof device is adopted, in which the dust cover is light in weight and reliable in operation; the linear guides of the X and Y axes are all imported precision products, and the photoelectric sensors and other precision positioning components are used to effectively ensure the transmission accuracy.

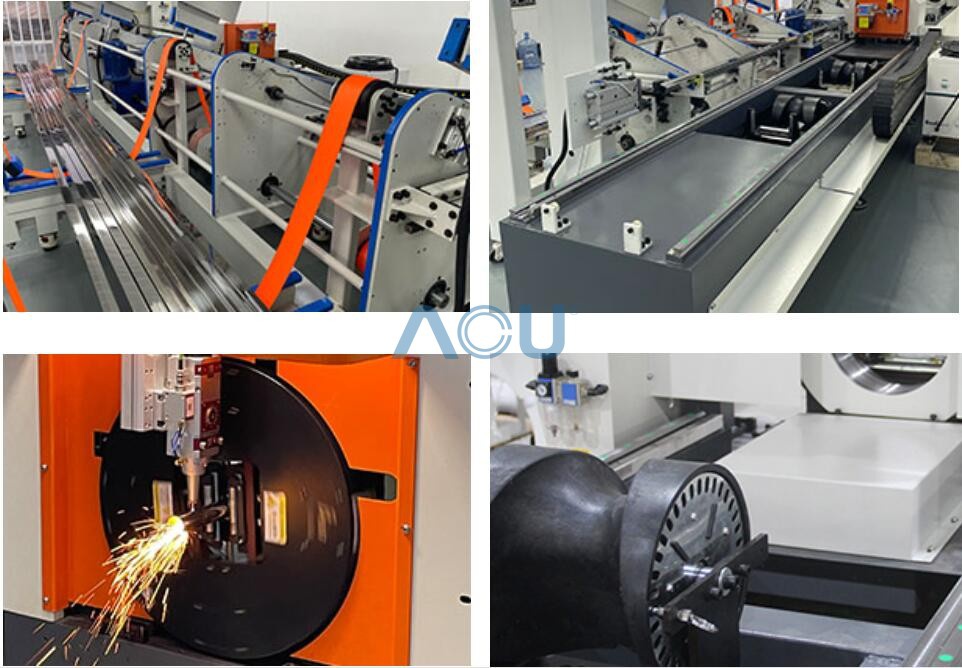

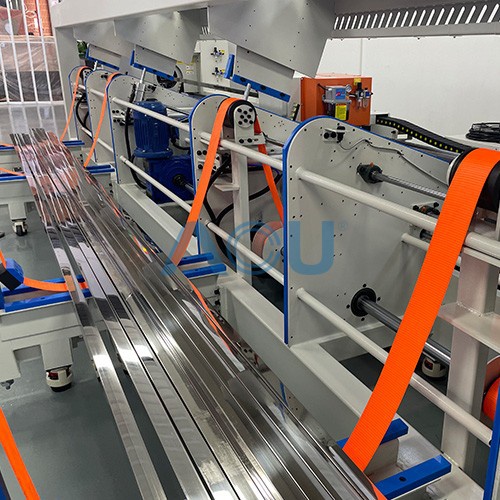

Product Details
